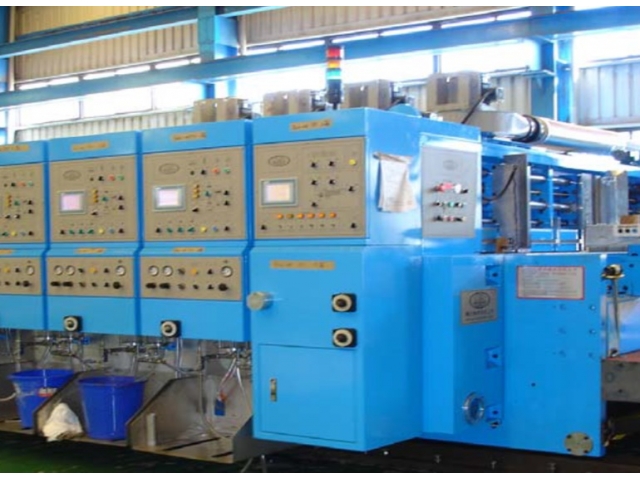

P1600 SERIES ROTARY DIE CUTTER / PRINTER SLOTTER

MODELS:
P-1630 SIZE: 1600mmX3000mm
P-1635 SIZE: 1600mmX3500mm
P-1640 SIZE: 1600mmX4000mm

 FEED SECTION-PLC CONTROL with HMI TOUCH SCREEN
 Sun Transmission, 3 or 4 Shaft Feed Box.
 Motorized Side Guides, Feed Gates, Backstop
 Sheet Vacuum
 Dual Durometer Rubber Feed Roll
 Motorized Machine Open-Close
 Motorized Pull Roll Nip


 PRINT SECTION-HMI TOUCH SCREEN and PLC
 Bottom Print, Top Vacuum Transfer
 Wheels Based Vacuum Transfer
 Motorized Board Caliper Adjust
 Ink Wash Up while Running
 Vacuum Box Zone Controlled with Dampers
 Ink Loss Sensor
 HMI Print Register Adjustment
 ARO Diaphragm Ink Pumps
 Motorized Print Cylinder Lateral Adjust


 DUAL SHAFTS PRE-CREASE/SCORE AND DUAL SHAFTS SLOT SECTIONS-PLC CONTROL with HMI TOUCH SCREEN
 Motorized Board Caliper Adjust - Pre-Crease, Score, Trail and Leading Slot Heads
 Motorized Lateral Head Adjust
 Moveable Center Score and Slotting Heads
 Chrome Plated Scoring & Slotting Shafts
 Steel to Steel Glue Tab
 Solid Universal Shafts with Gearboxes Synchronize Lower and Upper Head Movement on Linear Bearings


 DIE CUT SECTION - HMI TOUCH SCREEN and PLC
 Top Die Cut
 Die Cylinder Lateral Adjust
 Anvil Cylinder Oscillation
 Dicar Anvil Covers
 Anvil Blanket Surface Trimmer
 Anvil Cylinder Speed Synchronization
 HMI Die Cut Register Adjust


 VIBRATOR/SEPARATOR/AUTO STACKER - HMI TOUCH SCREEN and PLC-AVAILABLE
